Autec A8 and A8B Radio Remote Control Systems

- 8 x 2-speed buttons (4 or 6-button to order) - Dual band 433/915MHz - Automatic vacant-channel detection - Programmable function button (eg. as hoist-select A/B/BOTH) - Data Feedback ( up to 4 x LEDs) - A8 has Internal Li-Ion Battery + Charging dock (ideal for mobile applications) - A8B has 2 x swappable batteries + charger - Up to 40 hours operation per charge (A8, 16h for A8B) - IP65 Transmitter & Receiver - Rugged fibre-reinforced nylon cases - Safety category for the STOP function: PLd - Tandem / Pitch-Catch / Multi-Receiver systems available

A8 Kits

Comprise: Transmitter Carrying Pouch/Strap Receiver with spring terminals 1 x Li-ion battery (installed) Charging cradle (specify 10-30Vdc or 110/240Vac) Aerial (internal/external/extension as specified) Manuals & Drawings

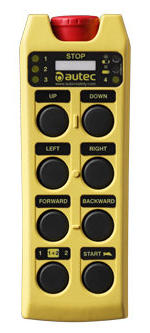

A8 / A8B Transmitters

Receivers

TYPE ACRS13-L and ACRS13-G

40-264 VAC IP65 -20 O C to +70 O C operating 120 x 200 x 80 mm Internal / External aerial ACRS13-G also has: 4 x inputs for use in logic or Data Feedback LEDs

TYPE DCRS13

9-30VDC (also 24Vac with internal aerial only) IP65 -20 O C to +70 O C operating 120 x 200 x 80 mm Internal / External aerial 4 x inputs for for use in logic or Data Feedback LEDs

TYPE HACRP8

Optimised for chain-hoists Compact size Powerful flashing beacon to show status 40-400V AC IP65 -20 O C to +70 O C operating 144 x 120 x 63 mm Internal aerial only due to electrical isolation requirements

TYPE MVRCAN

8-30Vdc / 24Vac IP65 -20 O C to +70 O C operating 144 x 120 x 63 mm External aerial 4 x Outputs + STOP CANOpen/ CAN2.0B TPDOs contain transmitter status RPDOs can control feedback LEDs on the transmitter

OTHER

The above receivers are the most commonly used for the A8 remotes as the number of outputs is normally quite low. In special cases, where - other bus technologies are used or - there is a requirement for voltage or PWM based outputs or - there are analogue or complex input requirements then other receivers may be better suited. Our experienced engineering department can provide the correct advice.

Questions we are likely to ask when specifying an A8 radio control

General: What is the type of machine? Are there specific safety standards applicable? What potential hazards are there, and what is the risk assessment? What is the likely distance between the operator and the machine? What is the operating environment - indoors, open area, building site, etc? What is the usage cycle - e.g. used for 1 x 8-hour shift, 5 days per week? Transmitter: What controls will the operator need? Are there any latching functions, or functions that interact with each other? Are there any interlocks or other logic required? Will there be any inputs from the machine, either for display, or that are involved in the logic? Does the machine status need to be displayed on the LEDs? Which commands are permitted to be ON at system-start, and which are forbidden (e.g. motion commands)? Is a PIN code required for system start? Can the remote be used while charging? (not for A8B) Receiver: What power supply voltage(s) are available? What are the loads being switched - e.g. relays, hydraulic solenoids, etc? What output currents for these outputs? Will the receiver be mounted in the open, or inside an electrical cubicle? If an external aerial kit is required, what is the required cable length? Batteries & Charger: What power supply is available?

A8-B Kits

Comprise: Transmitter Carrying Pouch/Strap Receiver with spring terminals 2 x Li-ion batteries Battery Charger (specify 10-30Vdc or 110/240Vac) Aerial (internal/external/extension as specified) Manuals & Drawings

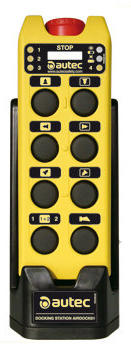

A8 Charging Dock

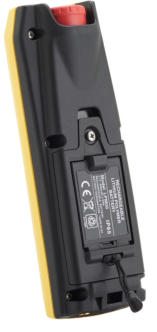

A8B Removable Batteries
