Dynamic FJR
Kits
Comprise: Transmitter with carry strap Receiver with matching plug/socket 2 x batteries Charger (specify 10-30Vdc or 110/240Vac) Aerial (internal/external/extension as specified) Manuals & Drawings
Sample configurations
3 x 2-axis joysticks
4 x 1-axis paddles
2 x 2-axis joysticks with feedback
download brochure
- IP65 transmitters and receivers - Rugged fibreglass-reinforced nylon housings - Frequency-hopping spread-spectrum radios for high reliability, interference resistant links - Completely automatic frequency management - Electronic smart-key for identity-coding simplifies set-to-work of spare transmitter - Fully electronic receivers with programmable logic capabilities - CAN/CANOpen in all receivers - Data feedback models available - via CAN or receiver inputs - STOP protected to PLe / Cat 4 / SIL 3 - Unexpected motion from standstill protected to PLd / Cat 3 / SIL 2 - 11 hour run time on a single 4hr charge (9.5 hr for feedback versions) - Speeds teachable from the transmitter - Cable-control option (for when radio use is prohibited) - Optional 2.7” monochrome display or 4.3” programmable Codesys colour display

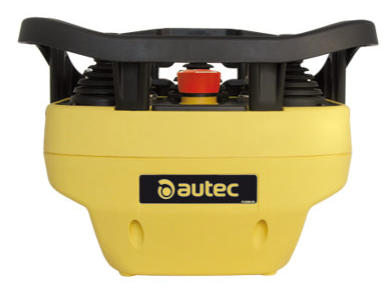

FJR Transmitter
Locally designed and built to your specifications
Receivers
TYPE ARM - Analogue + CANOpen 8-30 VDC IP65 -20 O C to +70 O C operating 202 x 230 x 96 mm Expandable to 64 Digital, 12 Analogue (Either PWM or Voltage/Ratiometric) Inputs available (for logic and feedback) CAN / CANOpen + physical I/O
TYPE ARX Compact Analogue Optional CANOpen 8-30 VDC IP65 -20 O C to +70 O C operating 202 x 123 x 83 mm Dual-channel safety output selectable as either STOP or Dump-Valve 6 x bi-directional PWM, 8 x Voltage/Ratiometric outputs 12 x Digital outputs Expandable up to 28 digital outputs
TYPE CRX Compact CANOpen 8-30 VDC IP65 -25 O C to +70 O C operating 144 x 162 x 63 mm 1 x safe output (selectable as STOP or SAFETY) as push-pull pair 4 x FET outputs 2A Other outputs over CAN / CANOpen
2.7” Display
4.3” Display
