control pendants
Giovenzana PLB series Control Pendants Our PL pendants are available in a range of sizes, and are completely customisable to your requirements. - Side-by-side design for magnet cranes and more complex machines - Easy wiring and installation - Rugged double-insulated enclosures in self-extinguishing thermoplastic - Sealed to IP65 - Standard click-on contact blocks - up to 3 contacts per button - Contacts with 16A (thermal) rating, 690V insulation voltage - NO contacts are slow-break, double-gap, self-cleaning - NC contacts are positive break so suitable for Emergency-Stop use (EN418 etc) - AC15 contact ratings (e.g AC solenoids): 16A@24Vac 5A@230Vac, 4A@400Vac - DC13 contact ratings (e.g. DC solenoids): 4A@24Vdc - Fuse rating gG-10A/500V (aM-12A/500V for DC30)
giovenzana pendant catalogue

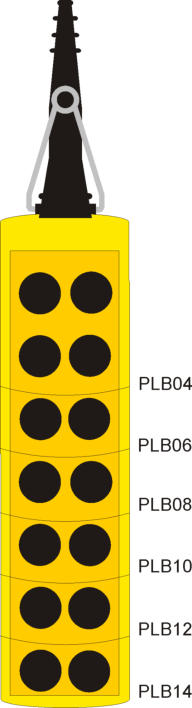

Build-to-Order Pendants We can custom-build for you a pendant to meet your exact needs. The PLB series is available in 5, 7, 8, 10, and 12-Hole configurations. The kits (PL05K, PL07K) are complete with: Cable Gland/Sleeve suit 7-18mm cable OD (PL05), 9-21mm cable OD (PL07, PL08, PL10, PL12) Cable Clamp for strain relief Contact Block mounting frames Mechanical interlocks (can be omitted if not needed) Screws, Gasket
Custom Labelling We can custom-build for you a pendant to meet your exact needs. Our unique process allows us to create full-colour graphics that are reverse-printed on automotive-grade 200- micron polyester film. With excellent adhesion and chemical resistance, these labels stand up to the rigours of industrial use.
control pendants
PushButtons available in the following laser-engravings UP / DOWN NORTH / SOUTH EAST / WEST IN / OUT FORWARD / REVERSE OPEN / CLOSE LEFT / RIGHT also Blank White / Black / Red / Green Latching Selectors 0-1 - for lights, etc (90 degree) 1-0-1 - for hoist-select, etc (+/- 45 degree) Momentary Selectors 1-0-1 (+/- 45-degree) Latching Keyswitches 0-1 limit override, etc. (90 degree) 1-0-1 (+/- 45 degree) Potentiometers standard 10k linear also available in 1k-500k PWM driver board available for direct control of hydraulic valves LED Lamps 12-24 Vac/dc Green/Yellow/Red Lamp Holder (Ba9s) Green / Yellow / Red / Blue / White
control pendants
Giovenzana PLB series Control Pendants Our PL pendants are available in a range of sizes, and are completely customisable to your requirements. - Side-by-side design for magnet cranes and more complex machines - Easy wiring and installation - Rugged double-insulated enclosures in self-extinguishing thermoplastic - Sealed to IP65 - Standard click-on contact blocks - up to 3 contacts per button - Contacts with 16A (thermal) rating, 690V insulation voltage - NO contacts are slow-break, double-gap, self-cleaning - NC contacts are positive break so suitable for Emergency-Stop use (EN418 etc) - AC15 contact ratings (e.g AC solenoids): 16A@24Vac 5A@230Vac, 4A@400Vac - DC13 contact ratings (e.g. DC solenoids): 4A@24Vdc - Fuse rating gG-10A/500V (aM- 12A/500V for DC30)
giovenzana pendant catalogue
Custom Labelling We can custom-build for you a pendant to meet your exact needs. Our unique process allows us to create full-colour graphics that are reverse-printed on automotive-grade 200-micron polyester film. With excellent adhesion and chemical resistance, these labels stand up to the rigours of industrial use.
control pendants
pendant key switch pendant rotary switch pendant led lamp engraved push buttons for pendant giovenzana potentiometer
PushButtons available in the following laser-engravings UP / DOWN NORTH / SOUTH EAST / WEST IN / OUT FORWARD / REVERSE OPEN / CLOSE LEFT / RIGHT also Blank White / Black / Red / Green Latching Selectors 0-1 - for lights, etc (90 degree) 1-0-1 - for hoist-select, etc (+/- 45 degree) Momentary Selectors 1-0-1 (+/- 45-degree) Latching Keyswitches 0-1 limit override, etc. (90 degree) 1-0-1 (+/- 45 degree) Potentiometers standard 10k linear also available in 1k-500k PWM driver board available for direct control of hydraulic valves LED Lamps 12-24 Vac/dc Green/Yellow/Red Lamp Holder (Ba9s) Green / Yellow / Red / Blue / White
Build-to-Order Pendants We can custom-build for you a pendant to meet your exact needs. The PLB series is available in 5, 7, 8, 10, and 12-Hole configurations. The kits (PL05K, PL07K) are complete with: Cable Gland/Sleeve suit 7-18mm cable OD (PL05), 9-21mm cable OD (PL07, PL08, PL10, PL12) Cable Clamp for strain relief Contact Block mounting frames Mechanical interlocks (can be omitted if not needed) Screws, Gasket
